The connector is suitable for our 45 x 110 mm plastic cladding strip for the heating system. The connector creates an invisible and clean transition between the strips.
HZ joint connector for SLF & SLF-PLUSThe HZ molded parts are always used when the HZ skirting boards are routed through room / building corners, individual profile sections are connected or an end finish is to be created. Installation:With HZ joint connector clip Article HZ-SV-SCHNo mitre cut required on the HZ skirting boardSlide the joint connector from above into the guide providedStable in shape up to 90° C flow temperature
The inner corner is suitable for our plastic 45 x 110 mm raw heater cladding strip.
The inner corner is suitable for our 120mm raw heater cladding strip in white. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
HZ inner corner for heating pipe cladding 80-100° The HZ moldings are always used when the HZ skirting boards are routed through room / building corners corners, individual profile sections are to be connected or an end Installation with HZ internal corner clip article HZ-IE-SCH. No miter cut required on the HZ skirting board. Slide the shaped part from above into the guide provided.
Universal end left/right, suitable for our 120mm raw heater cladding strip in white.
The inner corner is suitable for our raw heating cladding strip in the Berlin profile 120mm. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
The end on the left is suitable for our raw plastic cladding strip for the heating system 45 x 110 mm. This creates a clean finish to the strip.
The end on the right is suitable for our raw plastic cladding strip for the heating system 45 x 110 mm. This creates a clean finish to the strip.
The outside corner is suitable for our 120mm raw heater cladding strip in white. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
The outside corner is suitable for our plastic 45 x 110 mm raw heater cladding strip.

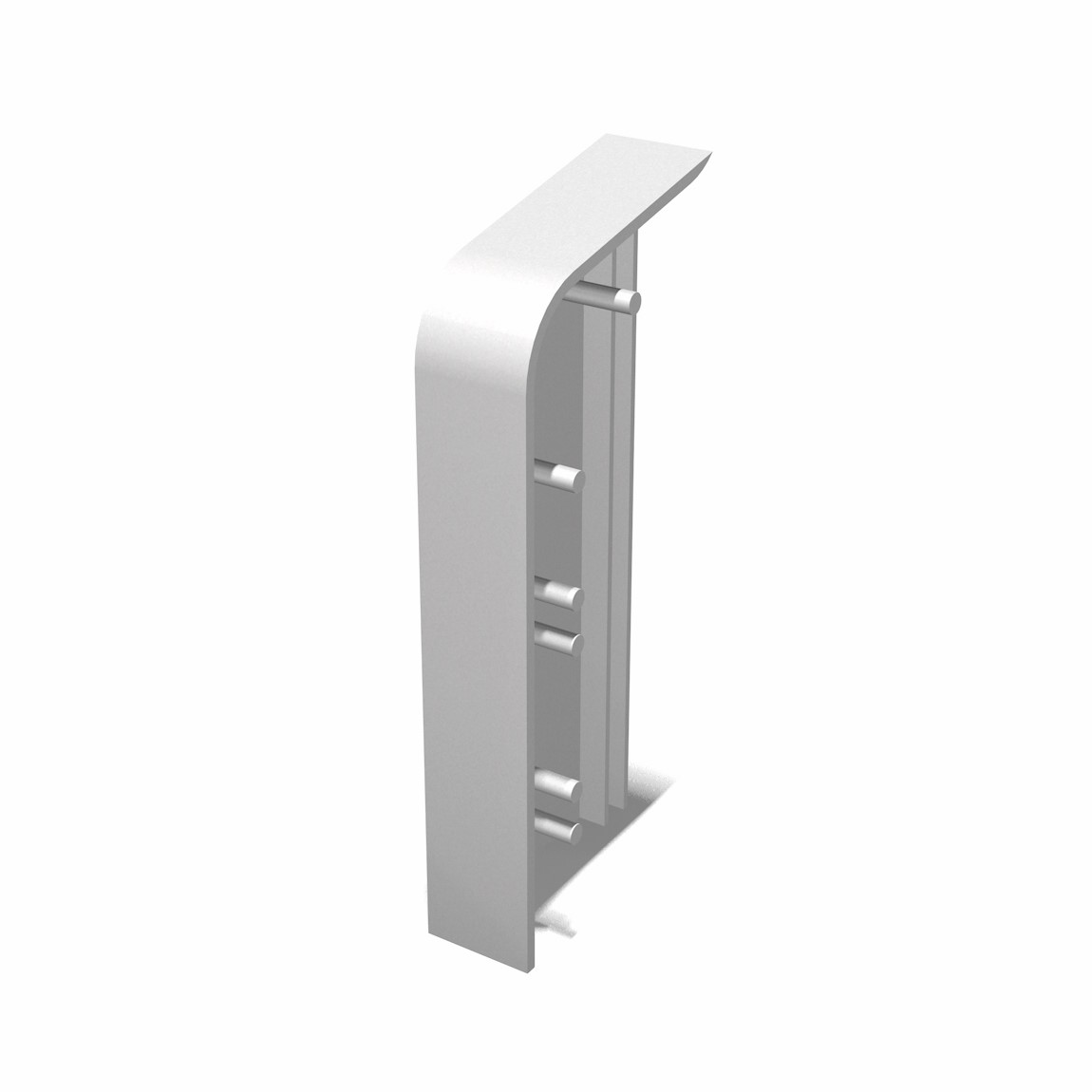

HZ shaped part end piece leftThe HZ shaped parts are always used when the HZ skirting boards are routed through room/building corners, individual profile sections are connected or an end finish is to be created. Installation:Insert the HZ shaped part with the spigots into the hollow chambers of the HZ skirting boards.Caution:When installing the inner corner or outer corner clip, the maximum outer diameter of the fitting and the pipe should be checked.
HZ shaped part end piece rightThe HZ shaped parts are always used when the HZ skirting boards are routed through room/building corners, individual profile sections are connected or an end finish is to be created. Installation:Insert the HZ molded part with the pins into the hollow chambers of the HZ skirting boards. Caution: When installing the inner corner or outer corner clip, the maximum outer diameter of the fitting and pipe should be checked.
HZ external corner for heating pipe cladding 80-100° The HZ molded parts are always used when the HZ skirting boards are routed through room / building corners, individual profile sections are connected or an end finish is to be created. Installation with HZ external corner clip article HZ-AE-SCH. No miter cut required on the HZ skirting board. Slide the shaped part from above into the guide provided.
The outside corner is suitable for our raw heating cladding strip in the Berlin profile 120mm. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
HZ inner corner for heating pipe cladding 100-135°The HZ moldings are always used when the HZ skirting boards are routed through room / building corners corners, individual profile sections are to be connected or an end Installation with HZ internal corner clip article HZ-IE-SCH. No miter cut required on the HZ skirting board. Slide the shaped part from above into the guide provided.
Universal end left/right, suitable for our raw heating cladding strip in the Berlin profile 120mm.
The inner corner is suitable for our 120mm raw heater cladding strip in Oak nature. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.

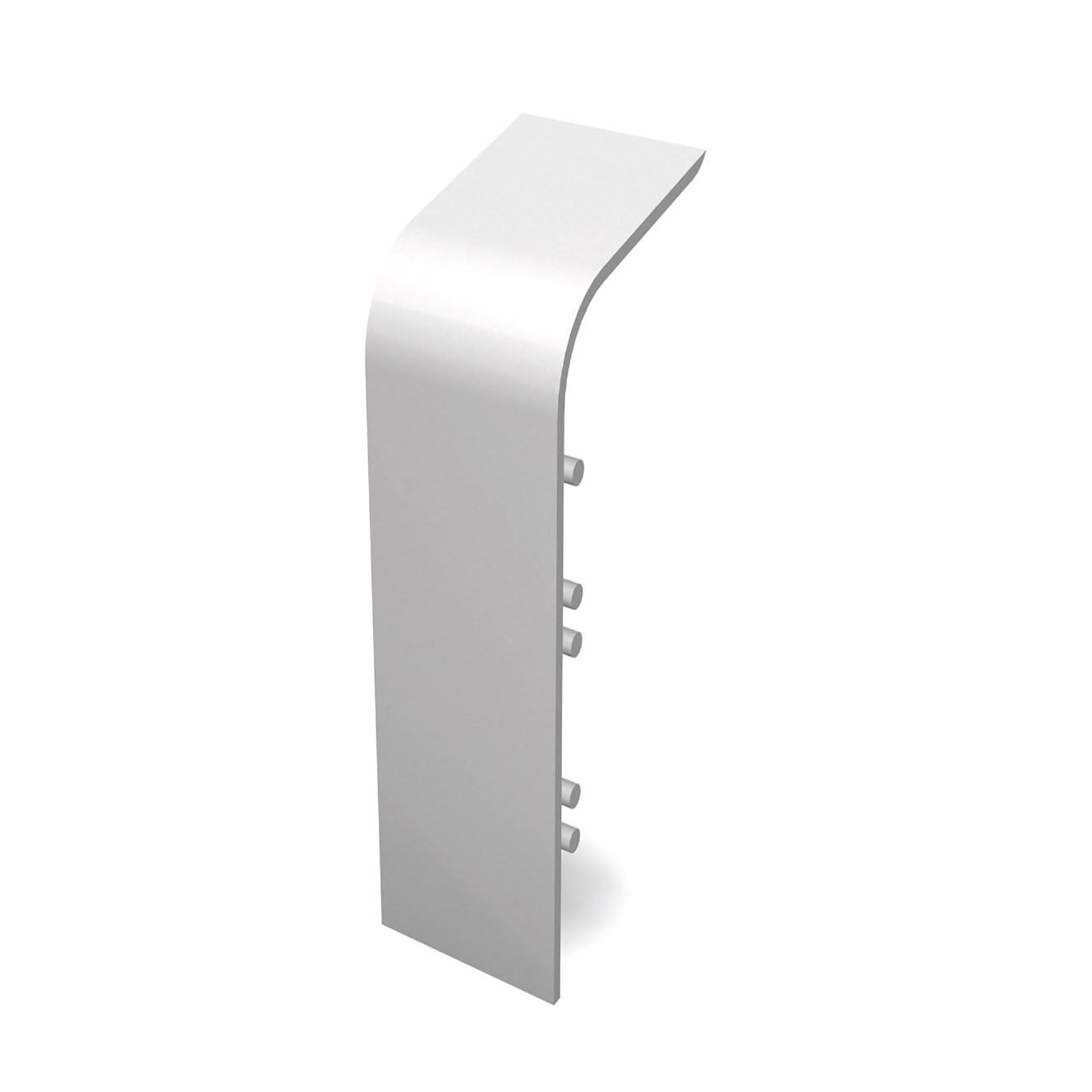

HZ butt connectors for SLLThe HZ molded parts are always used when the HZ skirting boards are routed through room / building corners, individual profile sections are connected or an end finish is to be created. Installation:Smooth cut on the SLL skirting board long, required Insert the butt connectors into the hollow chambers of the HZ skirting board sections We also recommend placing an HZ clip in the area of the joint stable in shape up to 90° C flow temperature
The inner corner is suitable for our 90 x 40 mm raw heater cladding strip.
HZ inner corner for heating pipe cladding The HZ moldings are always used when the HZ skirting boards are routed through room / building corners corners, individual profile sections are to be connected or an end Installation with HZ internal corner clip article HZ-IE-SCH. No miter cut required on the HZ skirting board. Slide the shaped part from above into the guide provided.
The plastic connector is suitable for our 90 x 40 x 2,500 mm heating pipe cladding strip. The connector creates an invisible and clean transition between the strips.
Universal end left/right, suitable for our 120mm raw heater cladding strip in Oak nature.
The end on the left is suitable for our raw plastic cladding strip for the heating system 45 x 110 mm. This creates a clean finish to the strip.
HZ external corner for heating pipe cladding The HZ molded parts are always used when the HZ skirting boards are routed through room / building corners, individual profile sections are connected or an end finish is to be created. Installation with HZ external corner clip article HZ-AE-SCH. No miter cut required on the HZ skirting board. Slide the shaped part from above into the guide provided.
The end on the right is suitable for our 90 x 40 x 2,500 mm heating pipe cladding strip. This creates a clean finish to the skirting board.
HZ shaped part end piece rightThe HZ shaped parts are always used when the HZ skirting boards are routed through room/building corners, individual profile sections are connected or an end finish is to be created. Installation:Insert the HZ molded part with the pins into the hollow chambers of the HZ skirting boards. Caution: When installing the inner corner or outer corner clip, the maximum outer diameter of the fitting and pipe should be checked.
The outside corner is suitable for our 90 x 40 x 2.500mm raw heater cladding strip.
The inner corner is suitable for our 120mm raw heater cladding strip in black. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
Universal end left/right, suitable for our 120mm raw heater cladding strip in black.
The outside corner is suitable for our 120mm raw heater cladding strip in Oak nature. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
The inner corner is suitable for our 120mm raw heater cladding strip in Beech nature. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
The inner corner is suitable for our 120mm raw heater cladding strip in Grey/anthracite. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
HZ shaped part end piece leftThe HZ shaped parts are always used when the HZ skirting boards are routed through room/building corners, individual profile sections are connected or an end finish is to be created. Installation:Insert the HZ shaped part with the spigots into the hollow chambers of the HZ skirting boards. Caution:When installing the inner corner or outer corner clip, the maximum outer diameter of the fitting and the pipe should be checked.
Universal end left/right, suitable for our 120mm raw heater cladding strip in Grey/anthracite.
The outside corner is suitable for our 120mm raw heater cladding strip in Grey/anthracite. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.

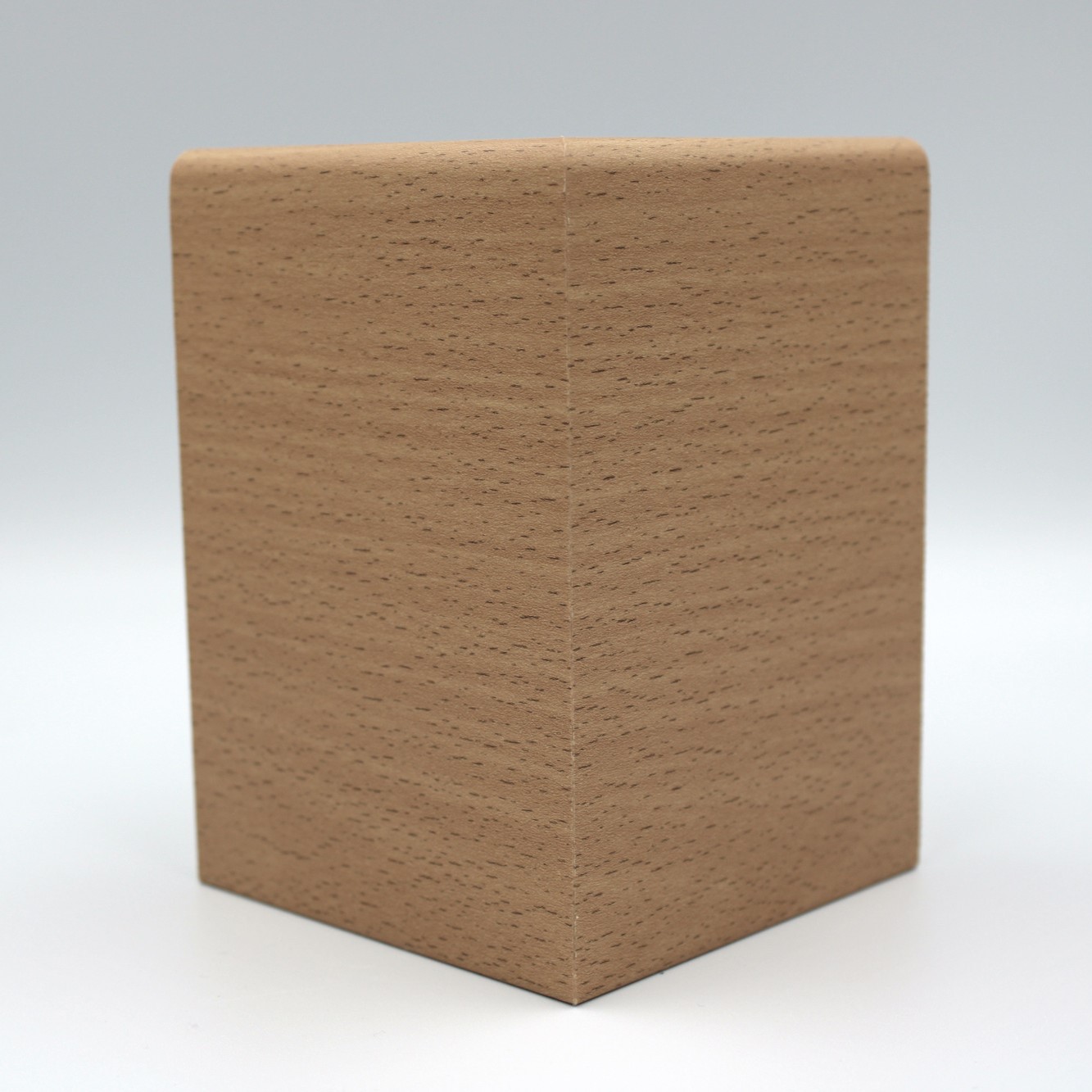

The outside corner is suitable for our 120mm raw heater cladding strip in Beech nature. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
Universal end left/right, suitable for our 120mm raw heater cladding strip in Beech nature.
The outside corner is suitable for our 120mm raw heater cladding strip in black. The otherwise necessary miter cutting is no longer necessary and saves a lot of time and effort.
HZ socket outlet container 73 x 73 mmSingle device carrier without insert (empty), consisting of rear and front panel. With cut-out opening 73 x 73 mm. For installing e.g. Schuko sockets etc. Length: 94 mm Width: 55 mm Height: 228 mm Stable up to 90° C flow temperatureInstallation instructionsWhen laying additional electrical cables, the relevant regulations for electrical installations (VDE, DIN etc.) must be observed! must be observed! The cable duct must be provided by the customer and is not included in the scope of delivery.Only use tested cable ducts with VDE test mark use. When simultaneously laying heating pipes and electrical and electrical installation under a skirting board the heating pipes must be laid as follows: Pipe flow always upper pipe! Pipe return always lower pipe!
HZ socket outlet container 62 x 62 mmSingle device carrier without insert (empty), consisting of rear and front panel. With cut-out opening 62 x 62 mm. For installing e.g. Schuko sockets etc.Length: 94 mmWidth: 55 mmHeight: 228 mmStable up to 90° C flow temperatureInstallation instructionsWhen laying additional electrical cables, the relevant regulations for electrical installations (VDE, DIN etc.) must be observed! must be observed!The cable duct must be provided by the customer and is not included in the scope of delivery.Only use tested cable ducts with VDE test mark use.When simultaneously laying heating pipes and electrical and electrical installation under a skirting board the heating pipes must be laid as follows:Pipe flow always upper pipe!Pipe return always lower pipe!
